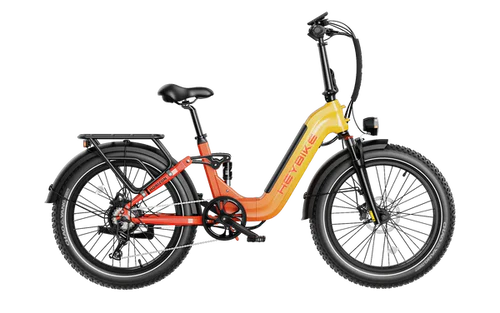

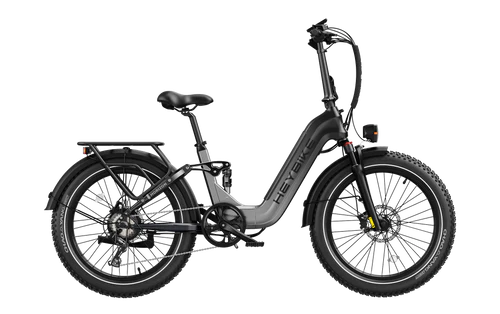

Why Horizon?

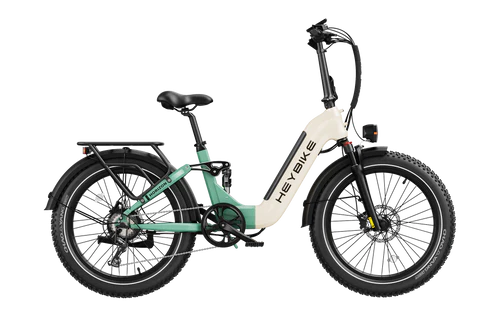

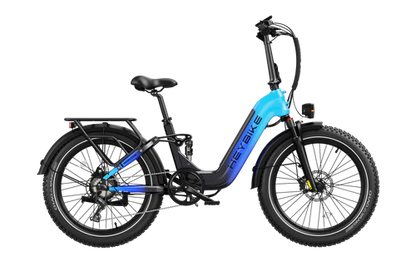

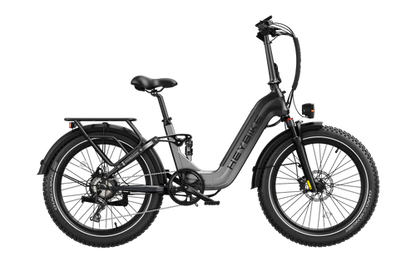

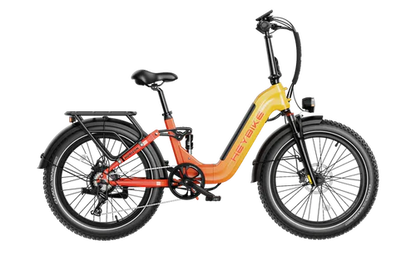

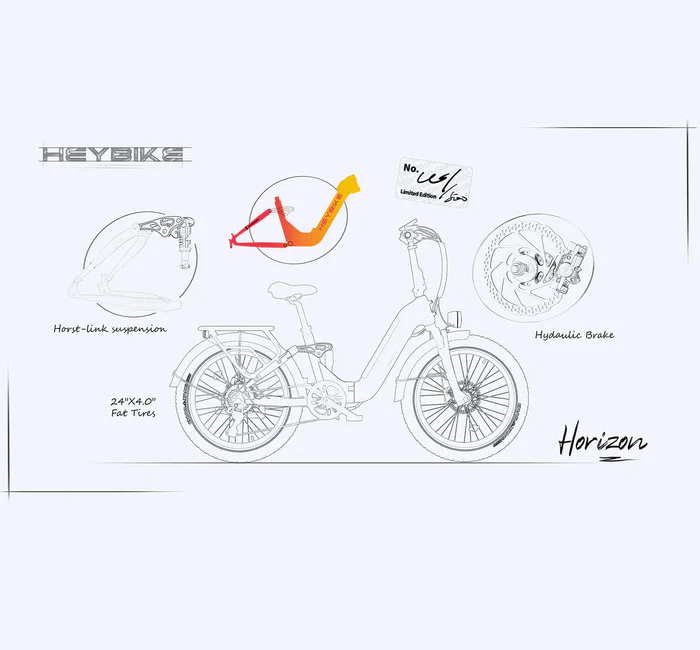

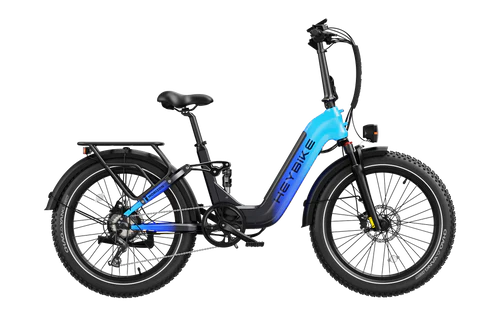

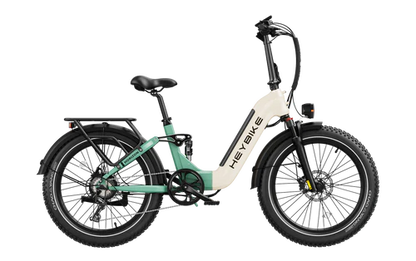

Inspired by the spectacular scenery of the foreshore sunset, our designer portrays a stunning bike frame with a gradient color, symbolizing every rider's limitless potential and innovative spirit. With a full suspension system, hydraulic disc brakes, and 24×4″ fat tires, Horizon enables you to ride comfortably and efficiently. Enjoy riding with it and push your limits!

Peak Motor

Torque

Speed

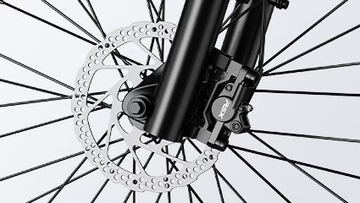

Frame: Aluminum Alloy, removable lithium-ion battery, rear rack included, fender mounts, front & rear mount mechanical disc, kickstand mount

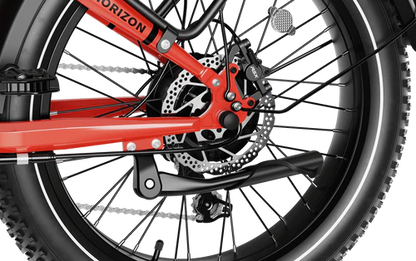

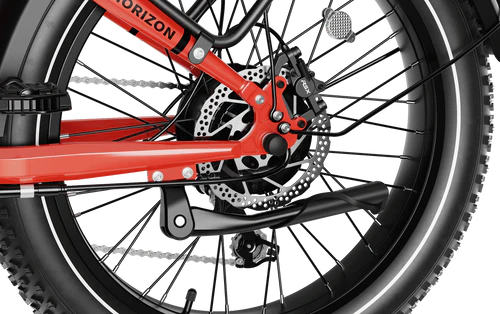

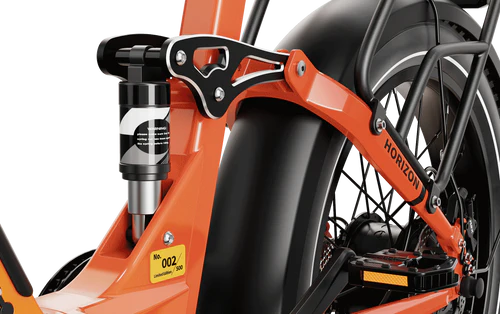

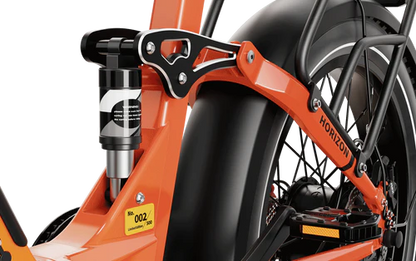

Full Suspension: Horst-link suspension and hydraulic front suspension

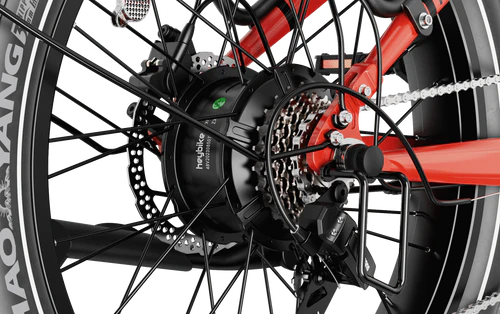

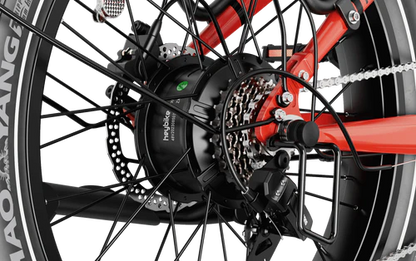

Hub rear: Brushless geared hub motor, 80Nm, 1400W
Spokes: Aluminum alloy

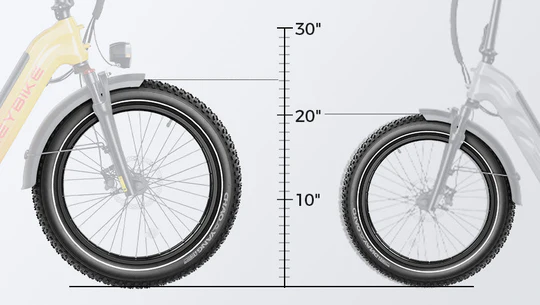

Tire: Puncture protection, 24"x4.0"-max tire size without fenders
Battery: 692Wh, removable lithium-ion battery
Charger: 4A, 54.6V output, 100V-220V AC input

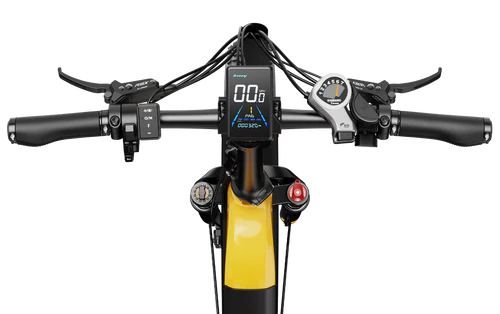

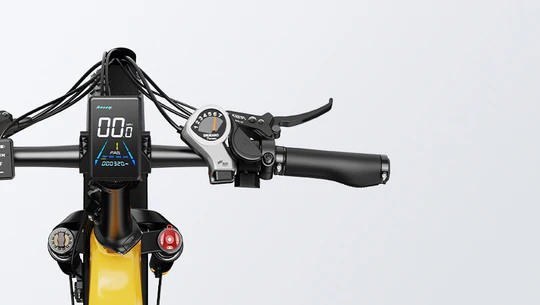

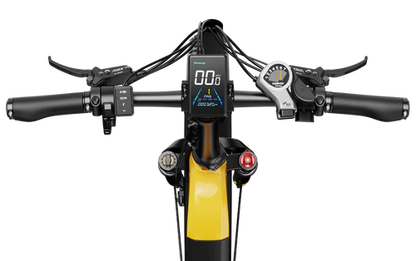

Display Type: LCD Display
Rear Derailleur: Shimano 7 speed
Light: LED headlight with auto-on feature, and integrated taillight with brake light.
Kickstand Alloy
Weight: 36 kg / 79.4 lbs
Weight limit Maximum total weight limit (combined weight of rider and cargo) of 330 pounds (149.7kg).

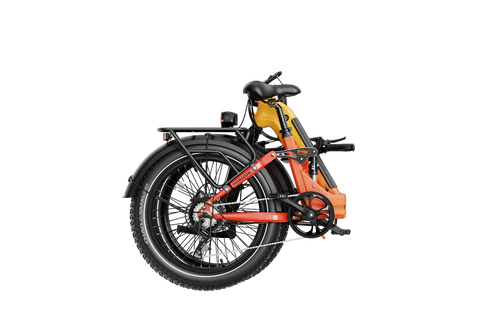

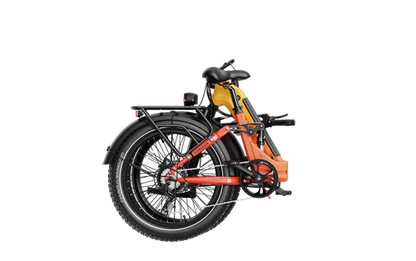

Folded Dimensions 49.2*23.6*31.5 inch

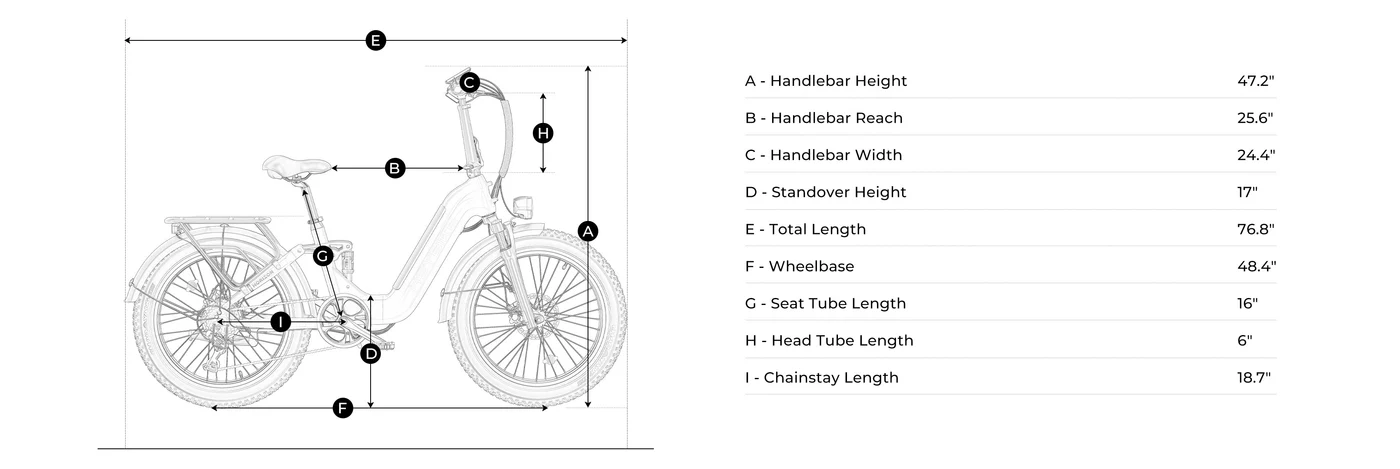

Unfolded Dimensions 75.6*24.4*46.5 inch
FAQs - Horizon
A full suspension ebike has front suspension in the fork as well as rear suspension (often referred to as a shock) whereas hardtail ebikes only have a front suspension fork. Full suspension ebikes are better suited to rough, technical, and often steep downhill terrain.
Full suspension improves comfort, traction, and control over gnarlier terrain, creating a more enjoyable riding experience.
You’ll benefit from a full suspension ebike if you:
Intend to ride really technical terrain: extra suspension improves how easily the bike can move over rougher trails and singletrack. They’re more forgiving of rider errors when it comes to choosing lines compared to a hardtail.
Want a more comfortable bike: as mentioned above, a full-suspension mountain bike gives much more comfort thanks to the rear shock. If the riding you’ll do isn’t so technical, but you know you want more comfort, you’ll be right at home on a full-sus ebikes.
Need to carry more speed: full-suspension bikes absorb the lumps and bumps better than a hardtail allowing you to carry more speed through technical sections of trail.
Full-suspension bikes are more expensive due to the cost of extra moving parts. The addition of a second suspension component all adds up. Investment in the development of kinematics (the geometry of motion) has also transformed the design of ebikes. You no longer need to be concerned that a full-suspension mountain bike will slow you down, instead, you can benefit from a balance of comfort, traction, and pedaling performance.
Horizon comes equipped with a kickstand and there are mounts to install fenders and a rear (they are included with the bike).
