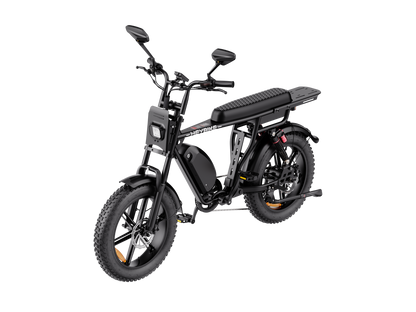

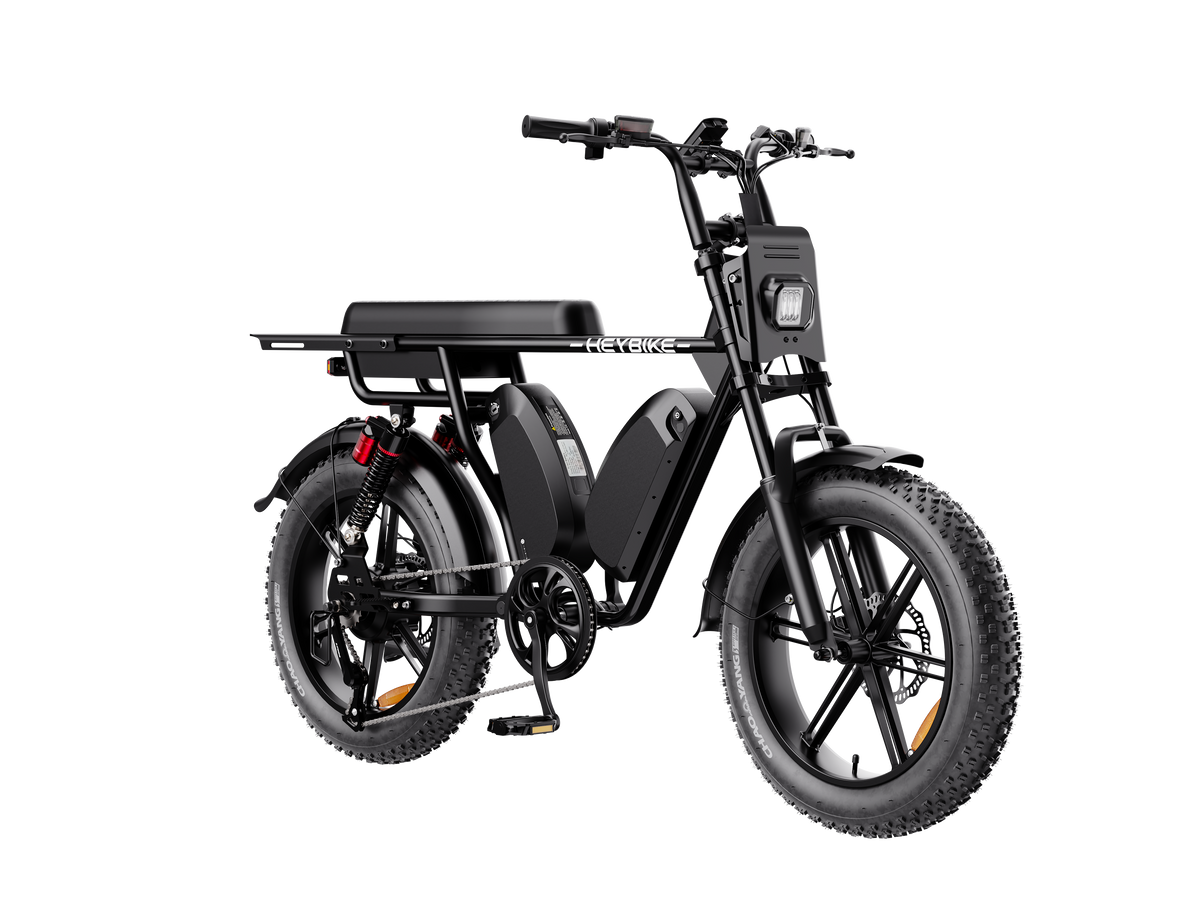

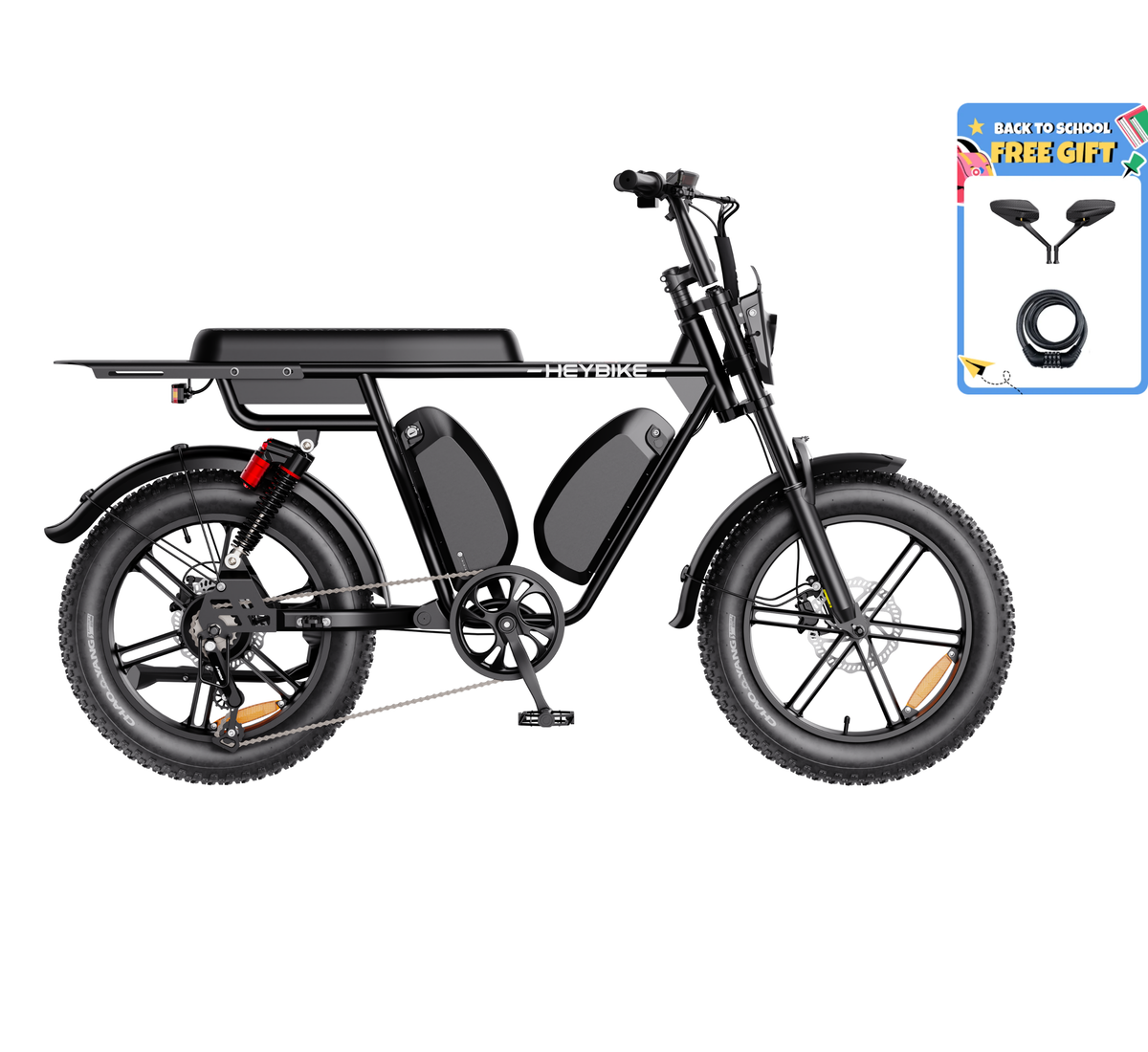

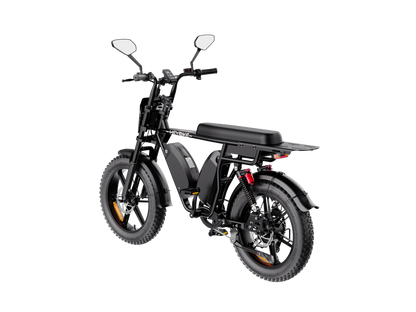

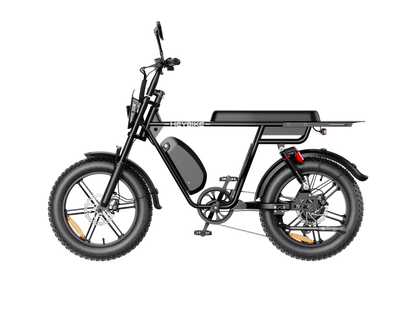

Why Saturn?

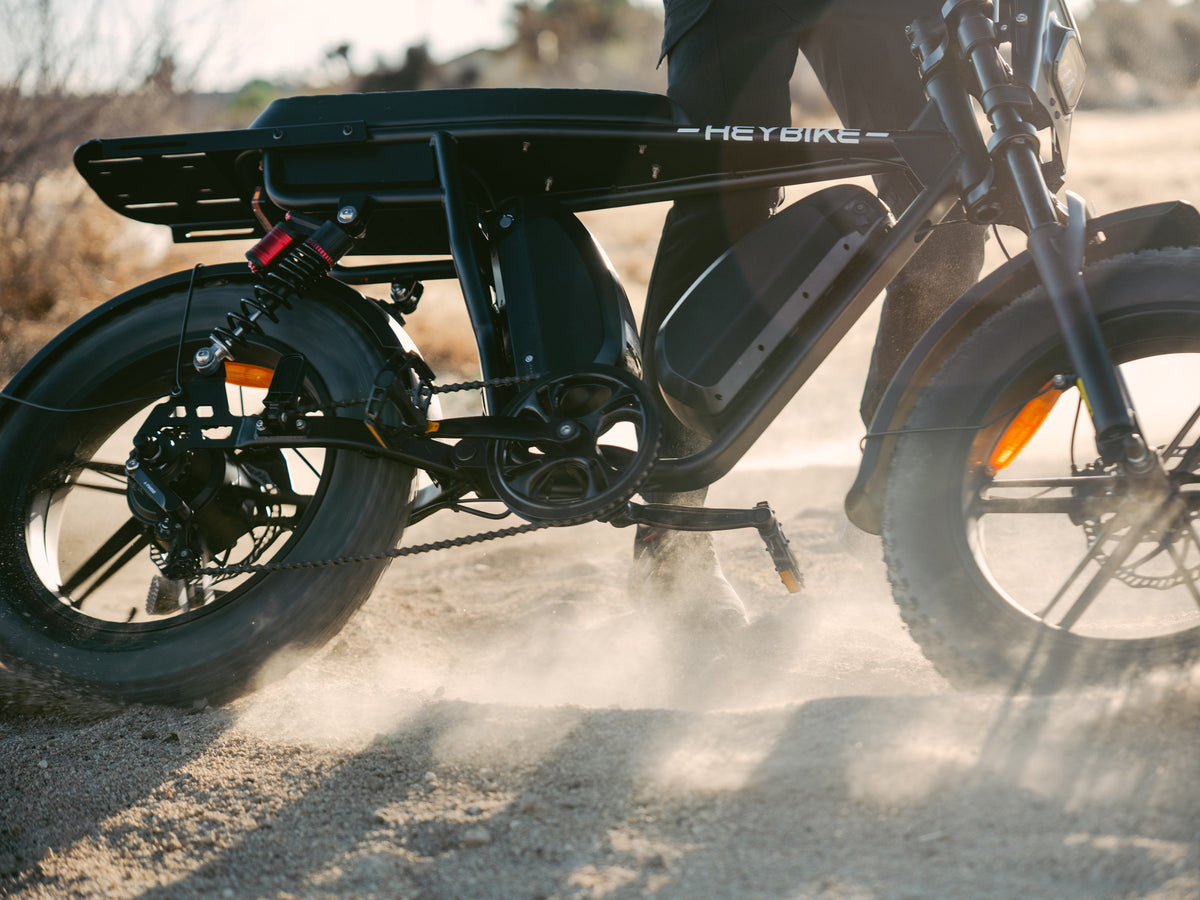

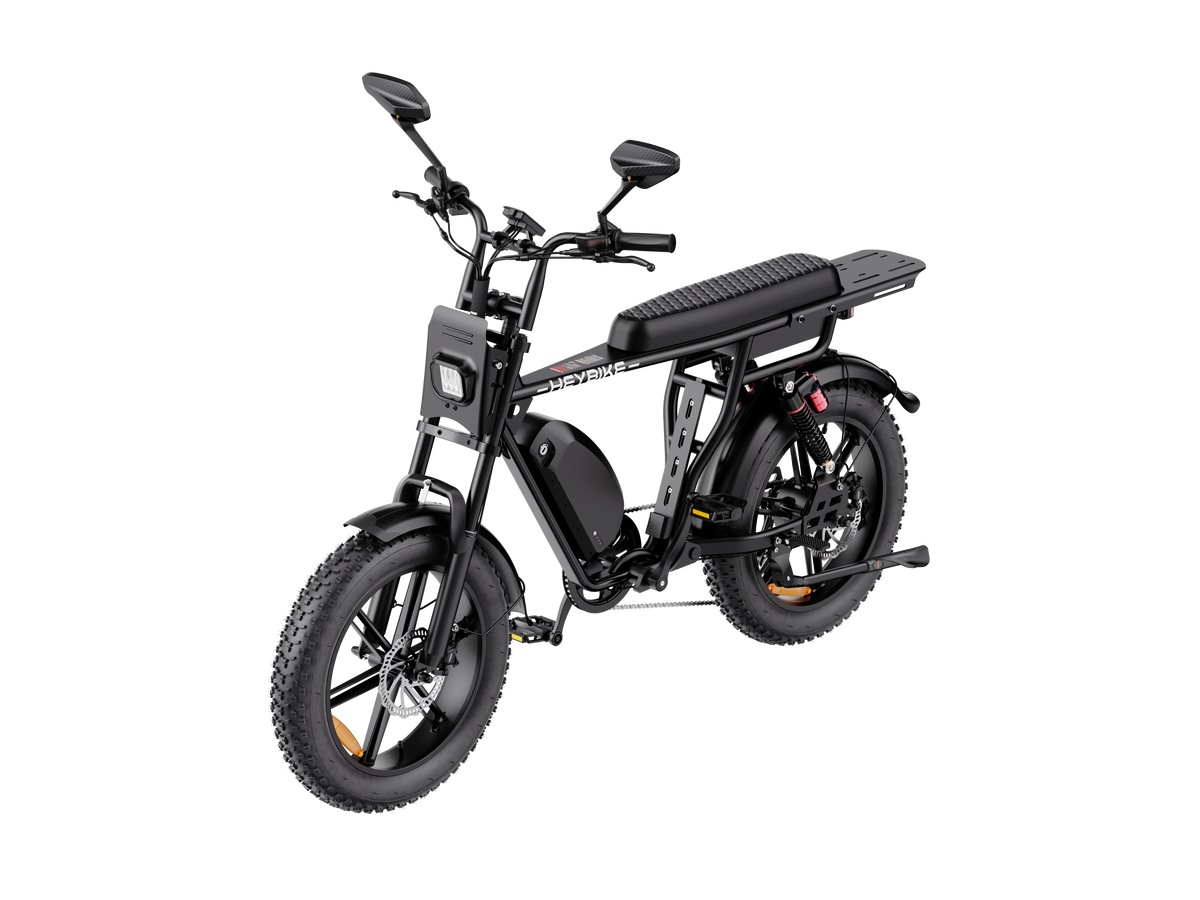

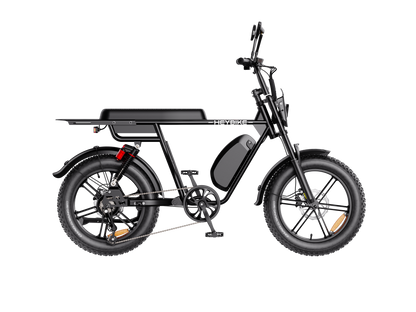

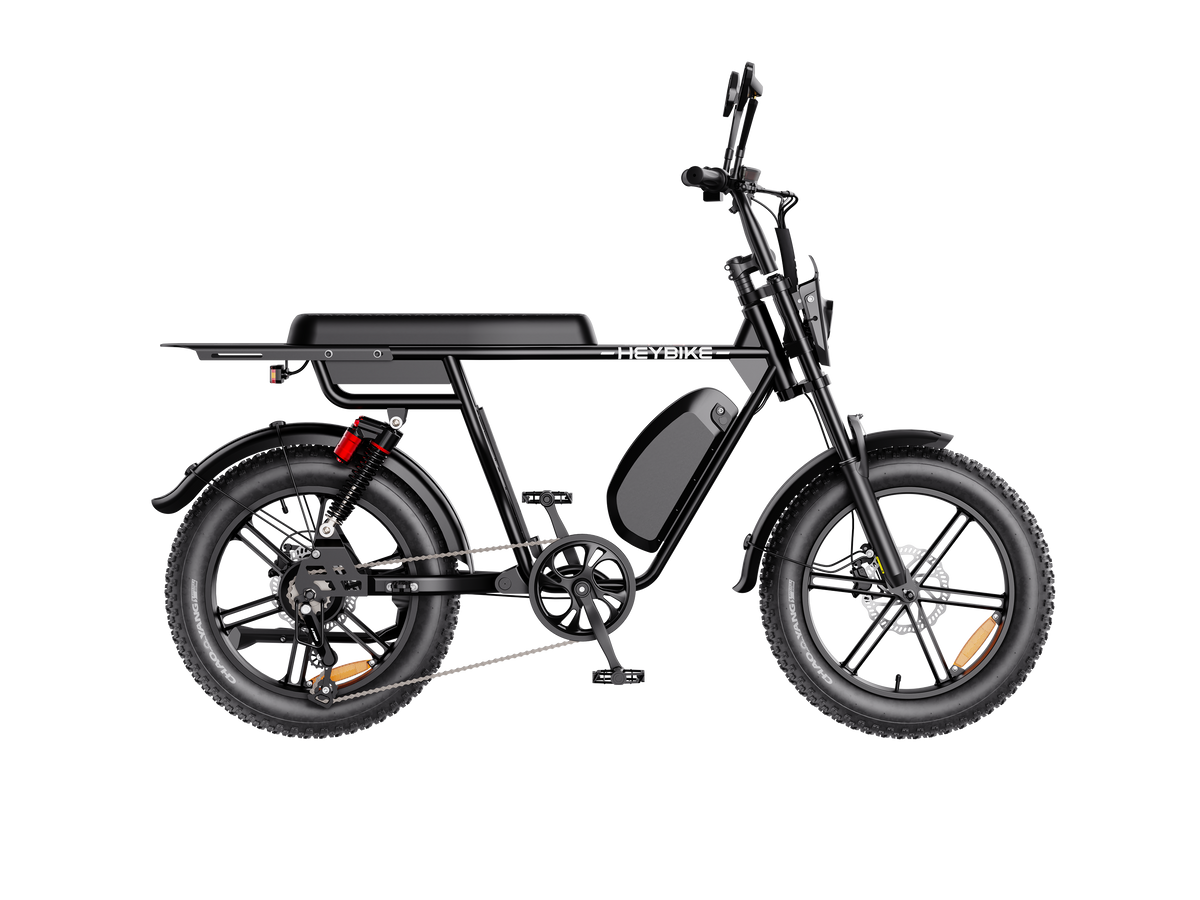

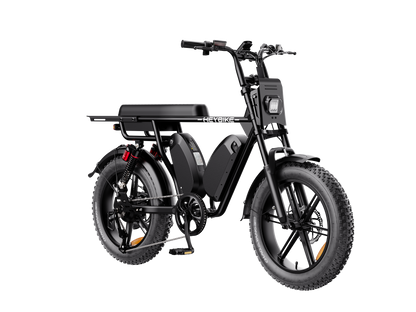

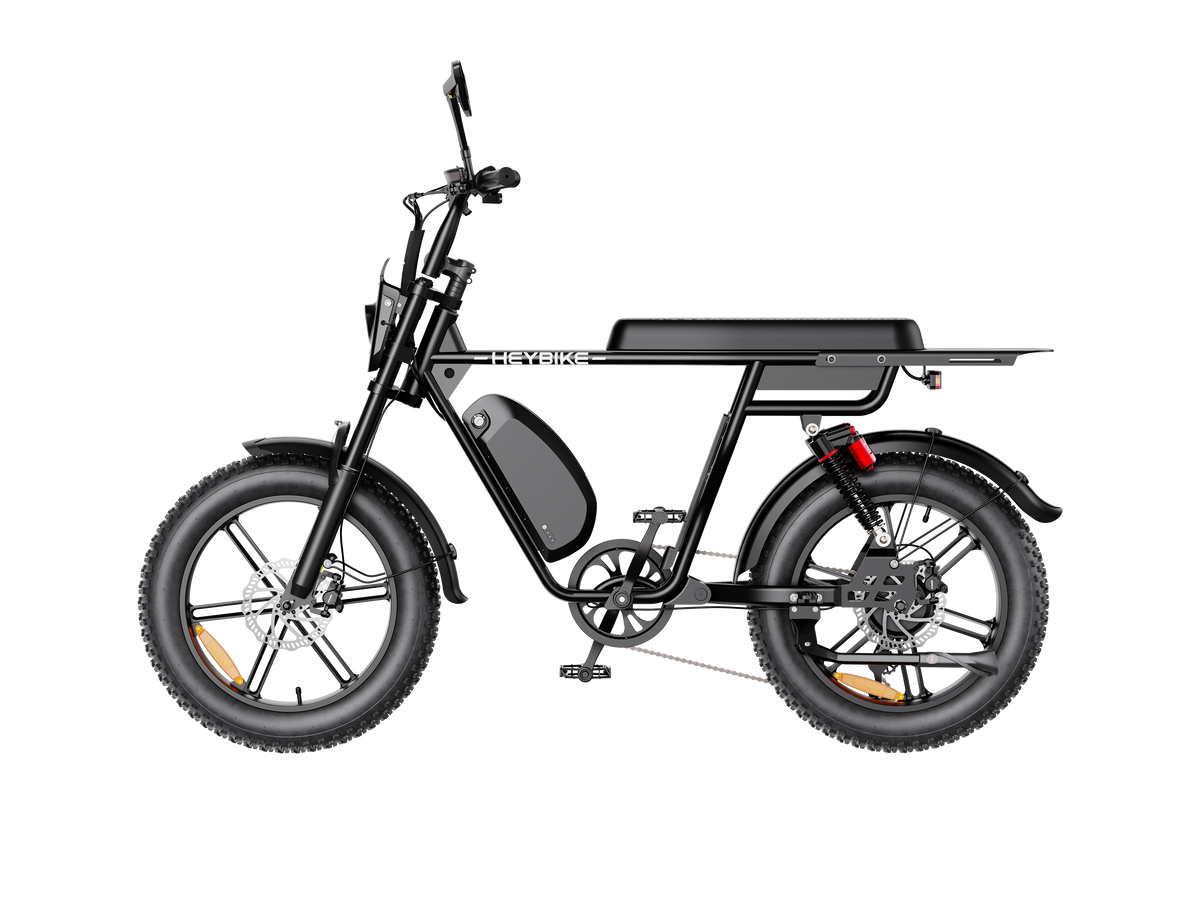

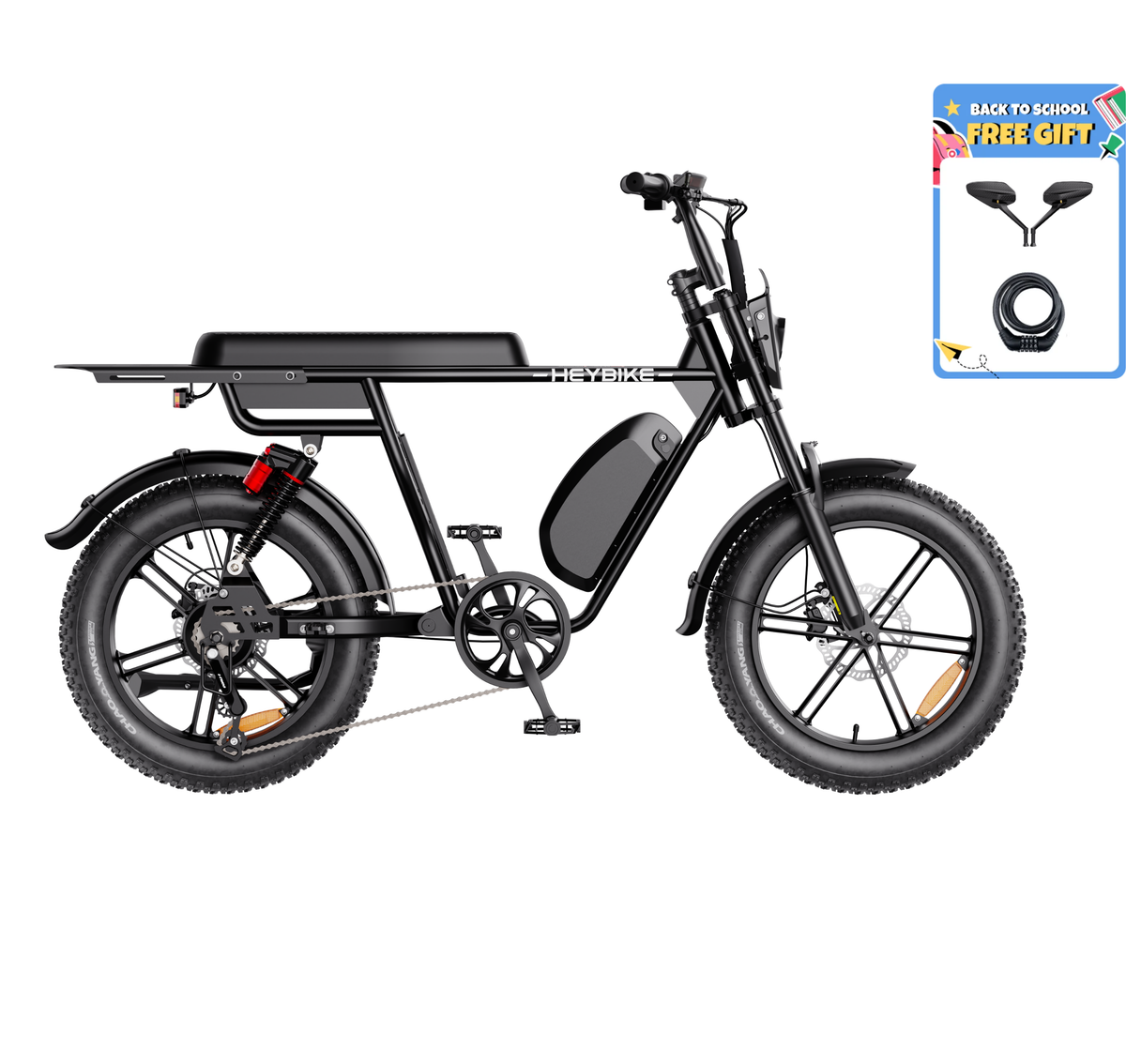

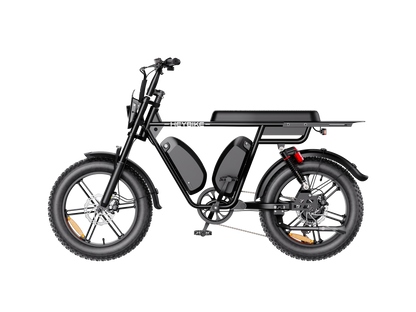

Retro-inspired style meets powerful performance. The Heybike Saturn combines a 1000W motor with 1800W peak power and 95 N·m of torque. Full suspension, hydraulic disc brakes, and 20 × 4.0-inch fat tires bring comfort and control to everyday rides. Choose a single or dual battery setup to match your adventures.
Peak Power
Torque

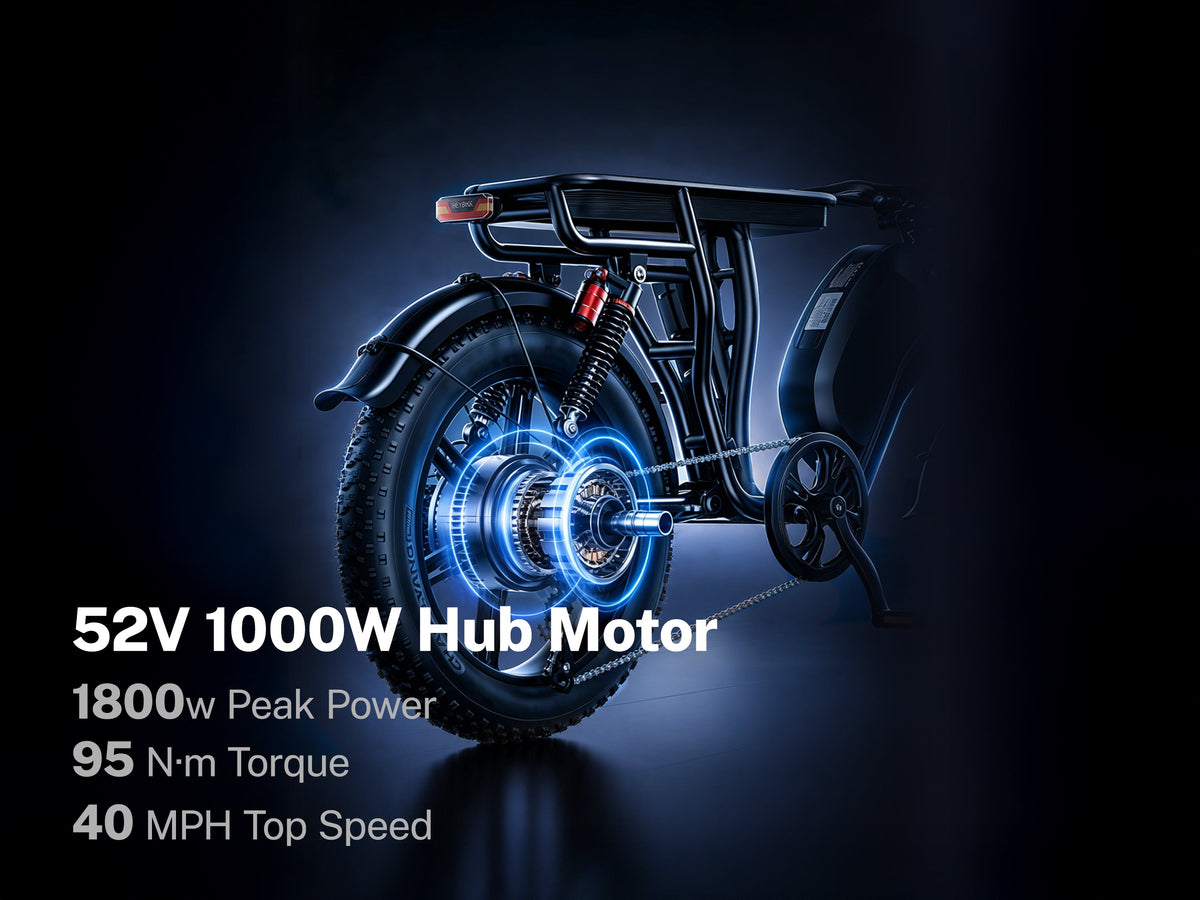

Motor: 1000W Hub Motor
Peak Power: 1800W
Torque: 95 N·m

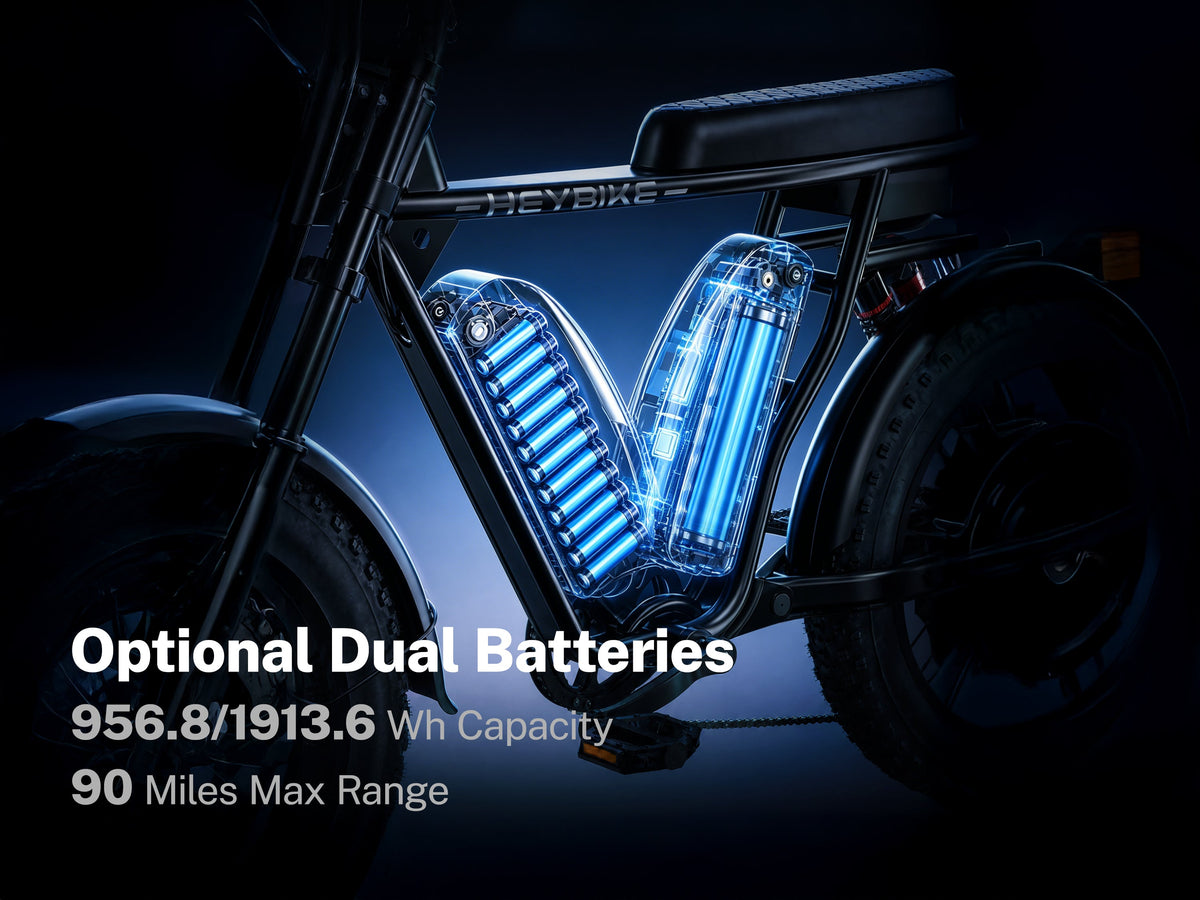

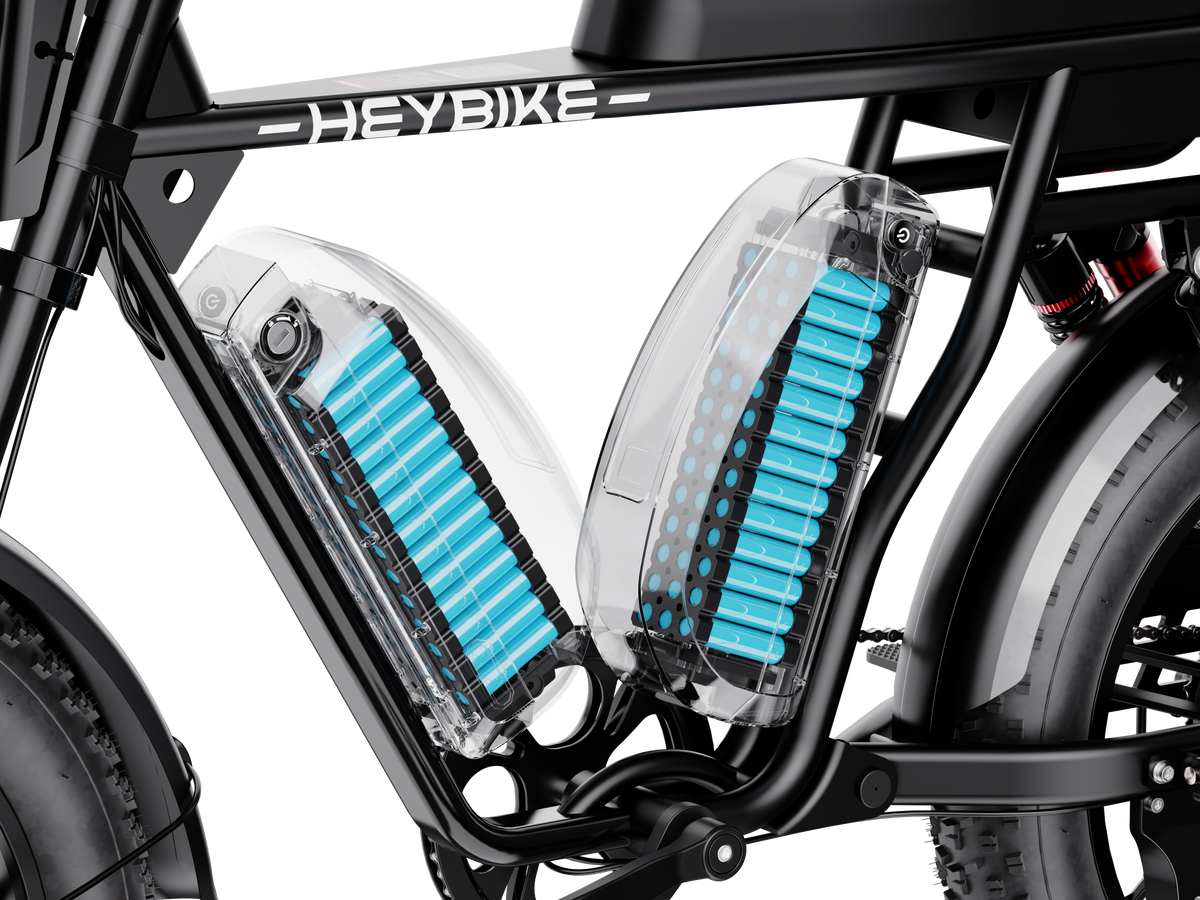

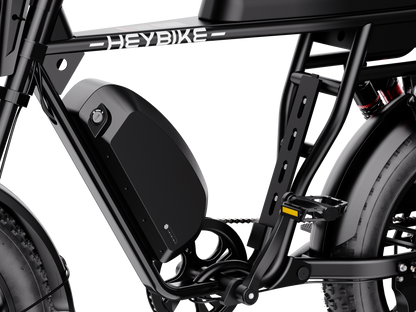

Battery: Single: 956.8Wh / Dual: 1913.6Wh

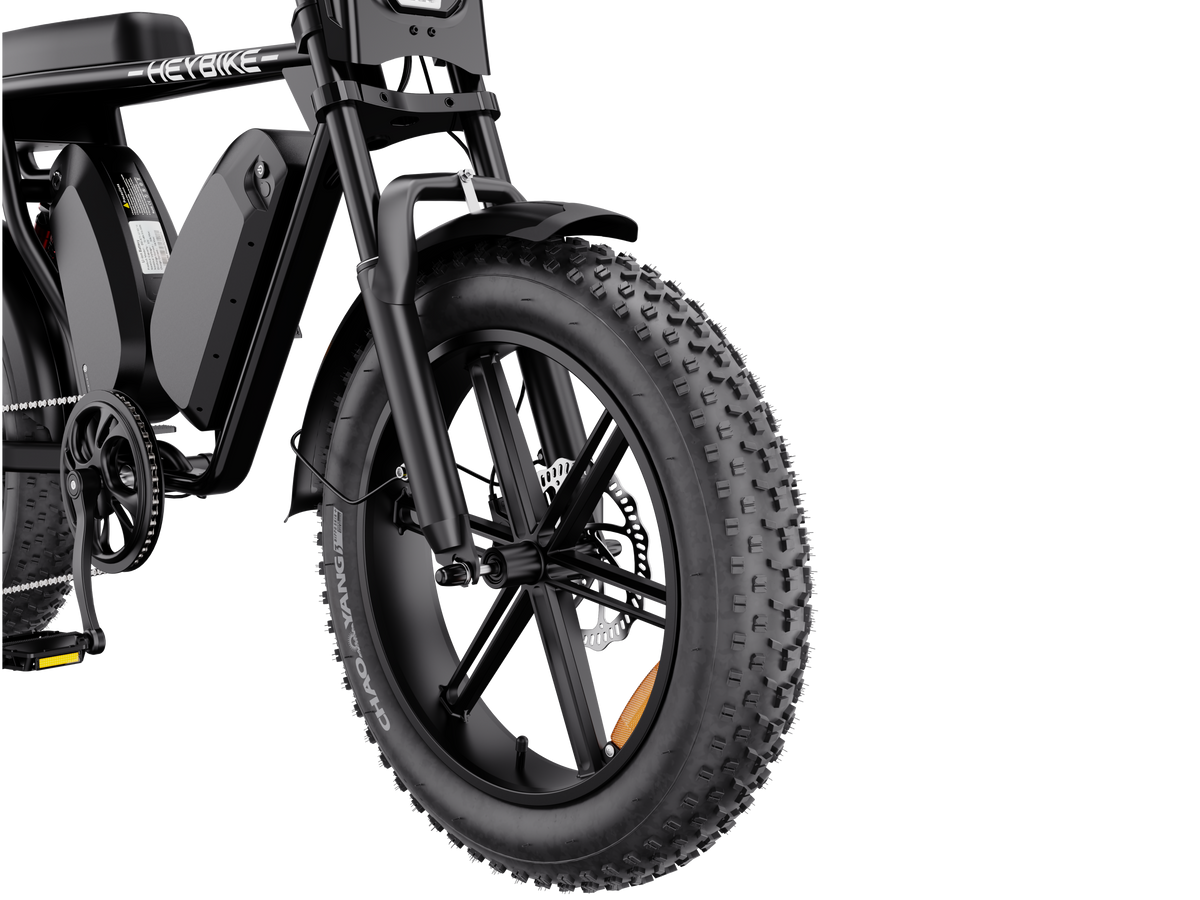

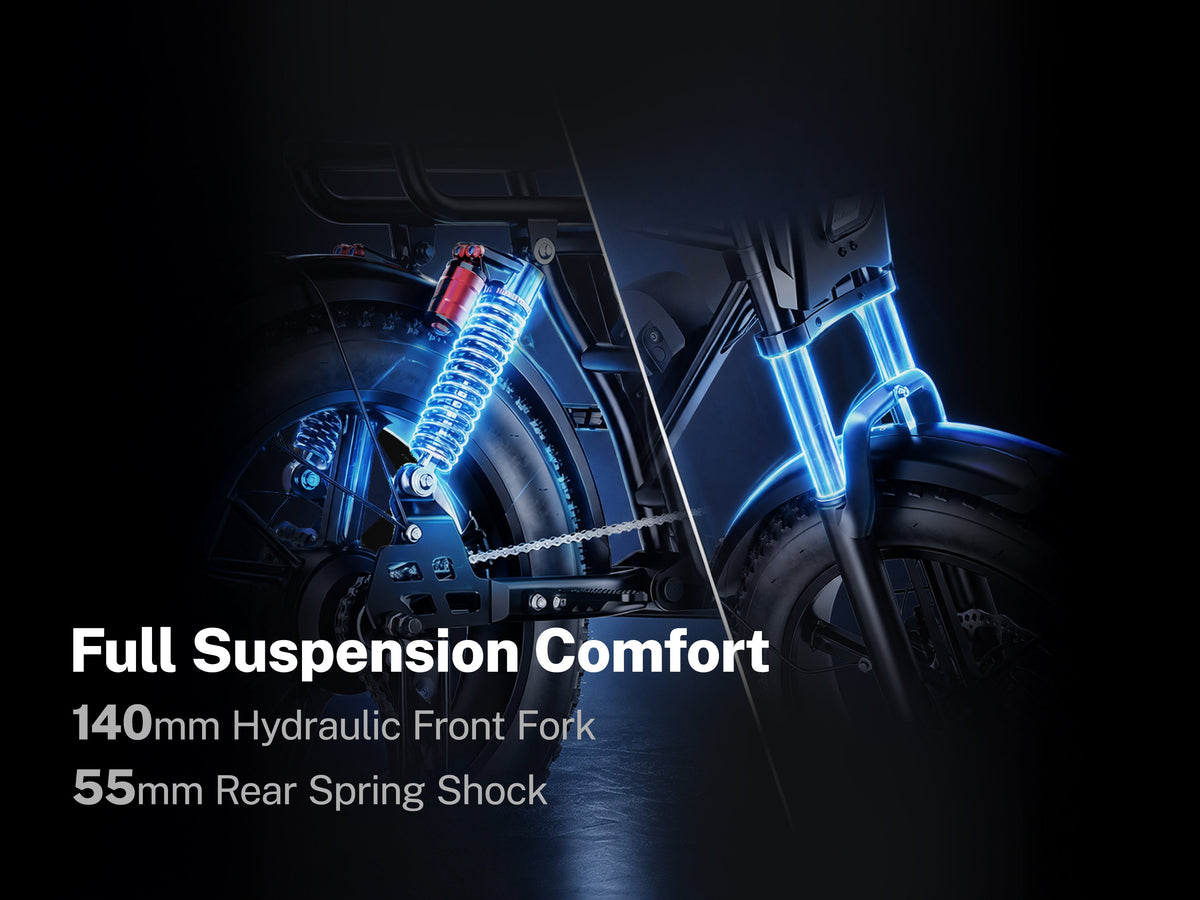

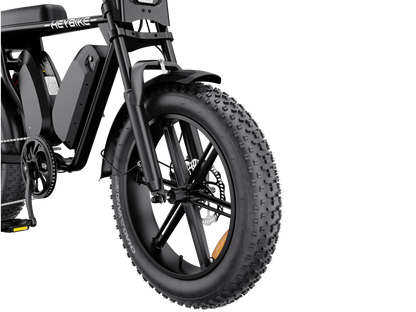

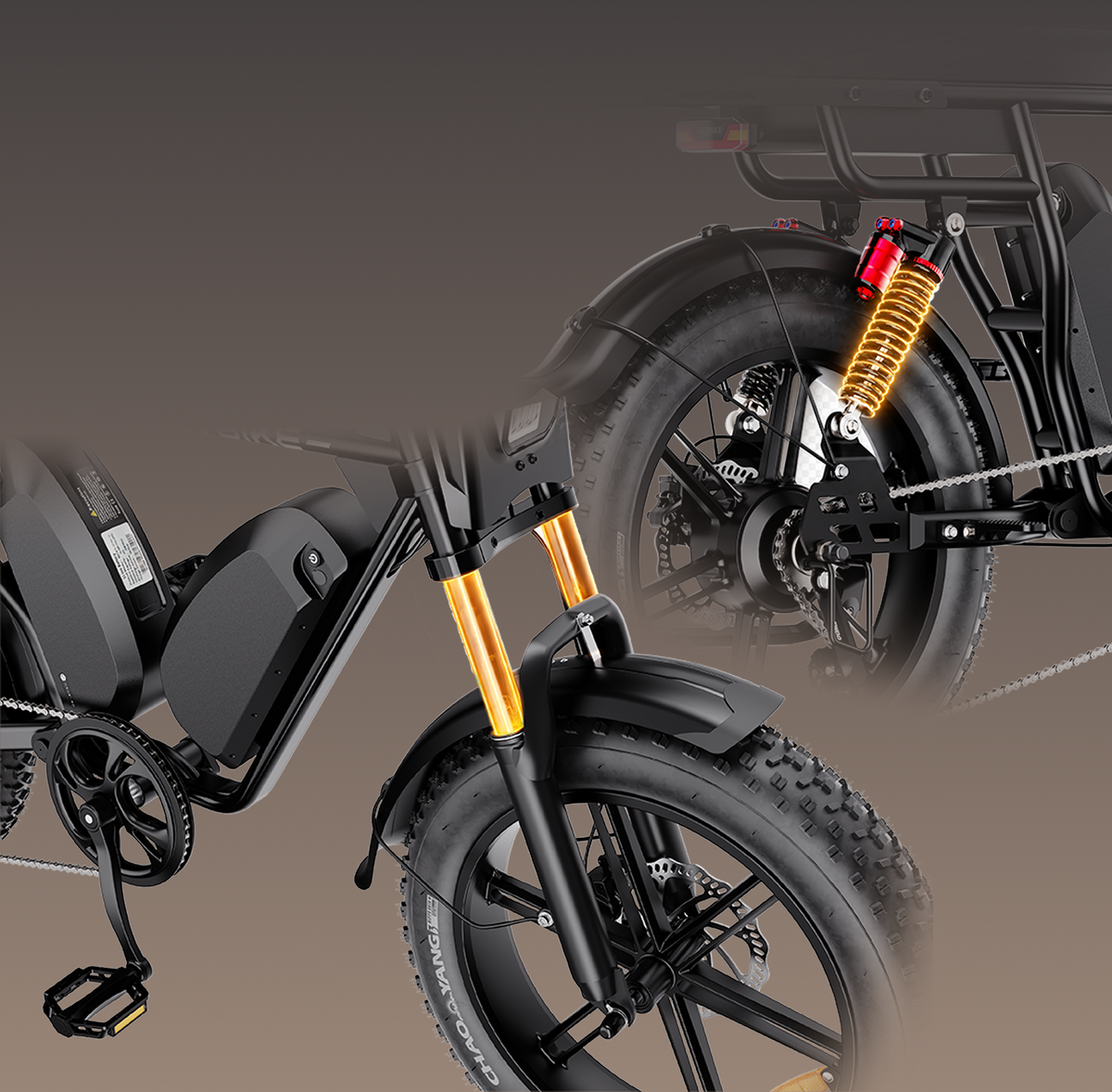

Front Suspension: Hydraulic Front Fork, 140 mm Travel

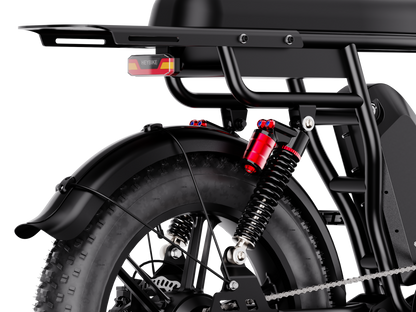

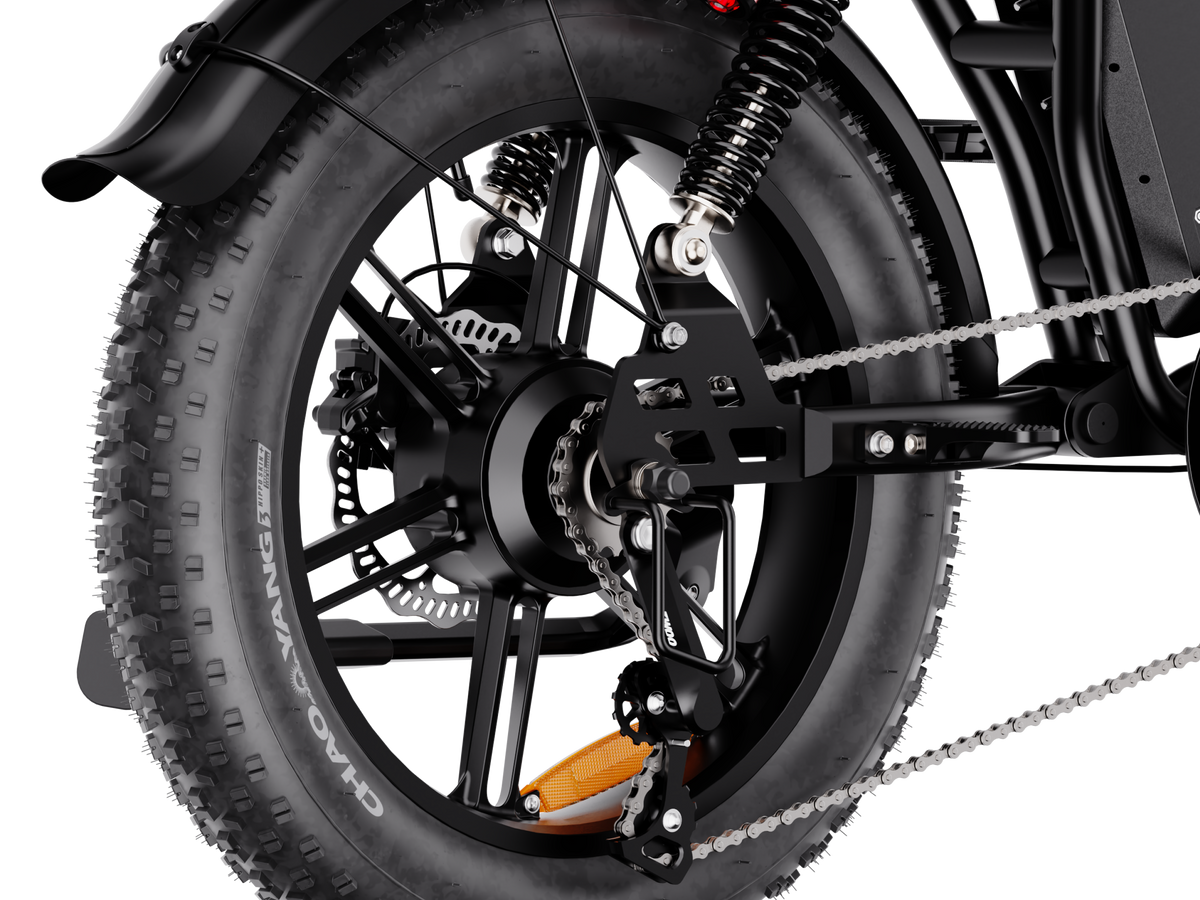

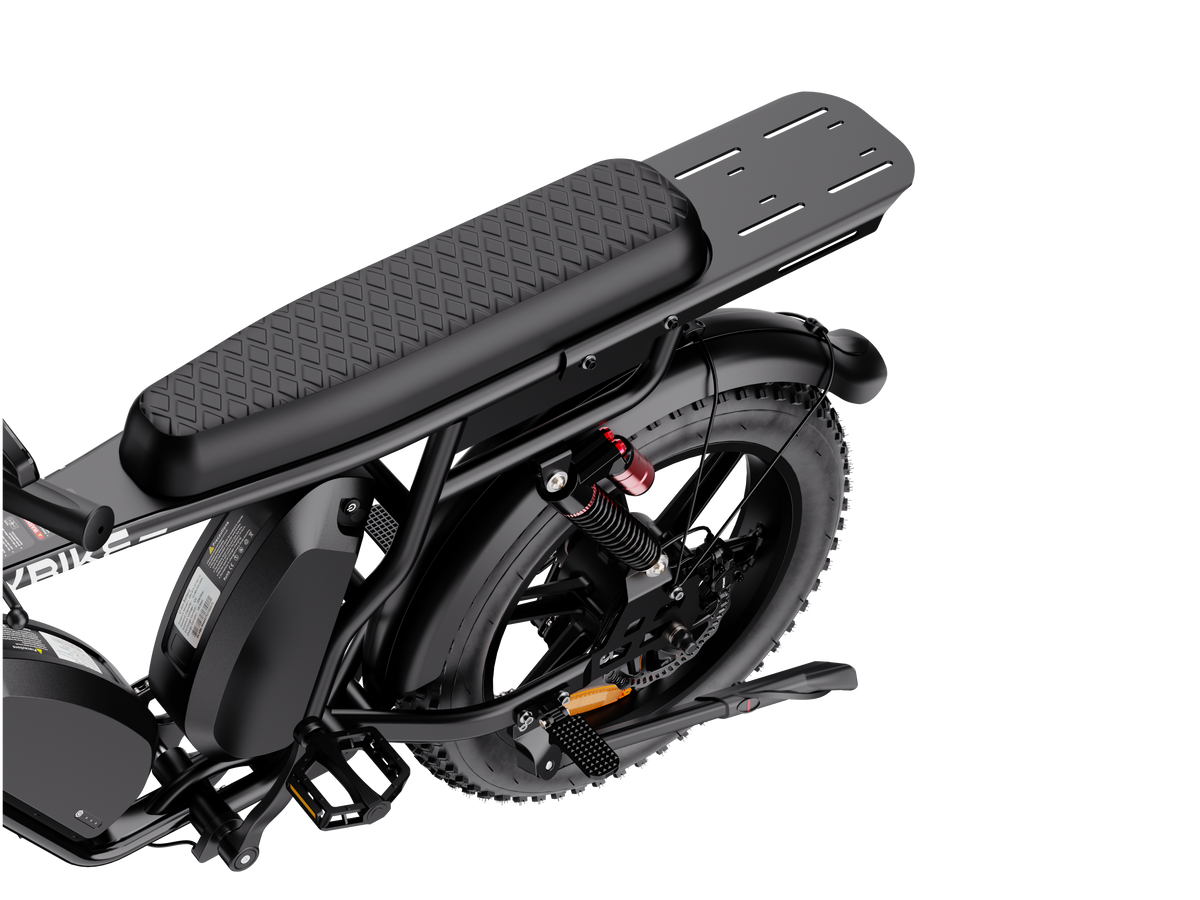

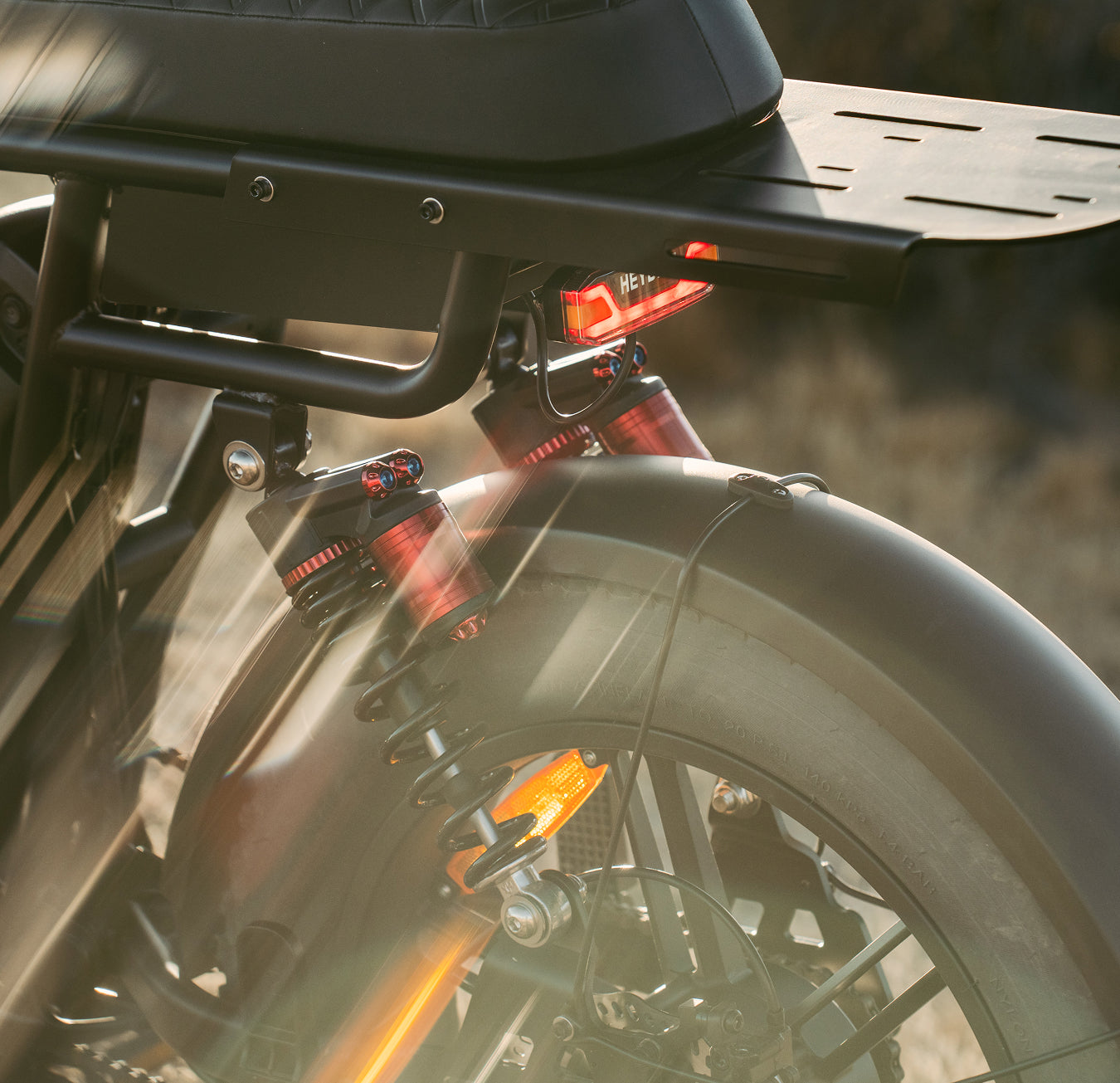

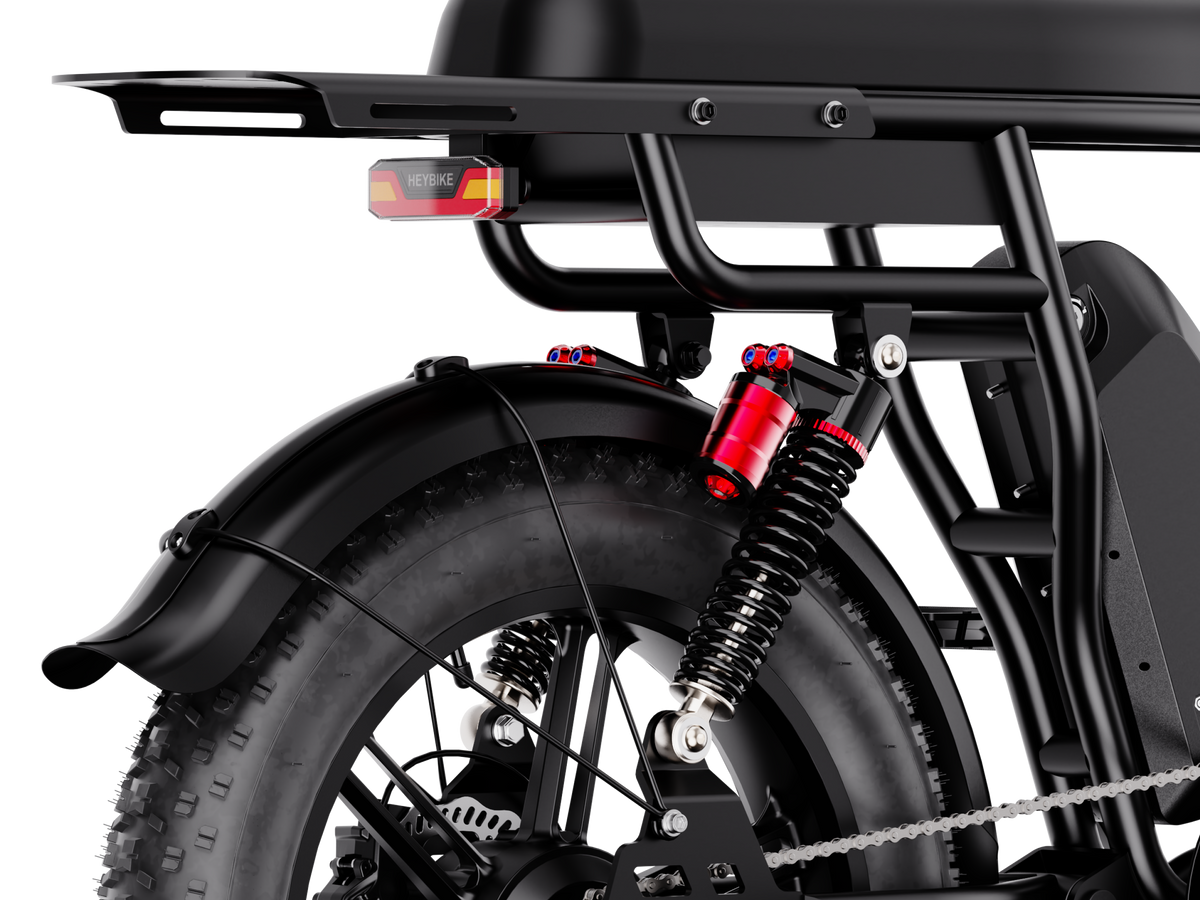

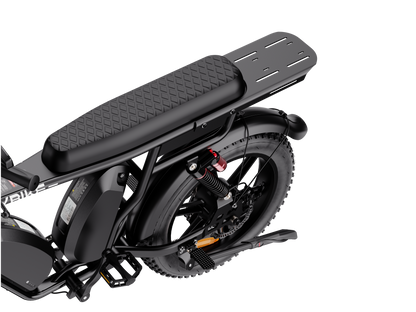

Rear Suspension: Rear Spring Suspension, 55 mm Travel

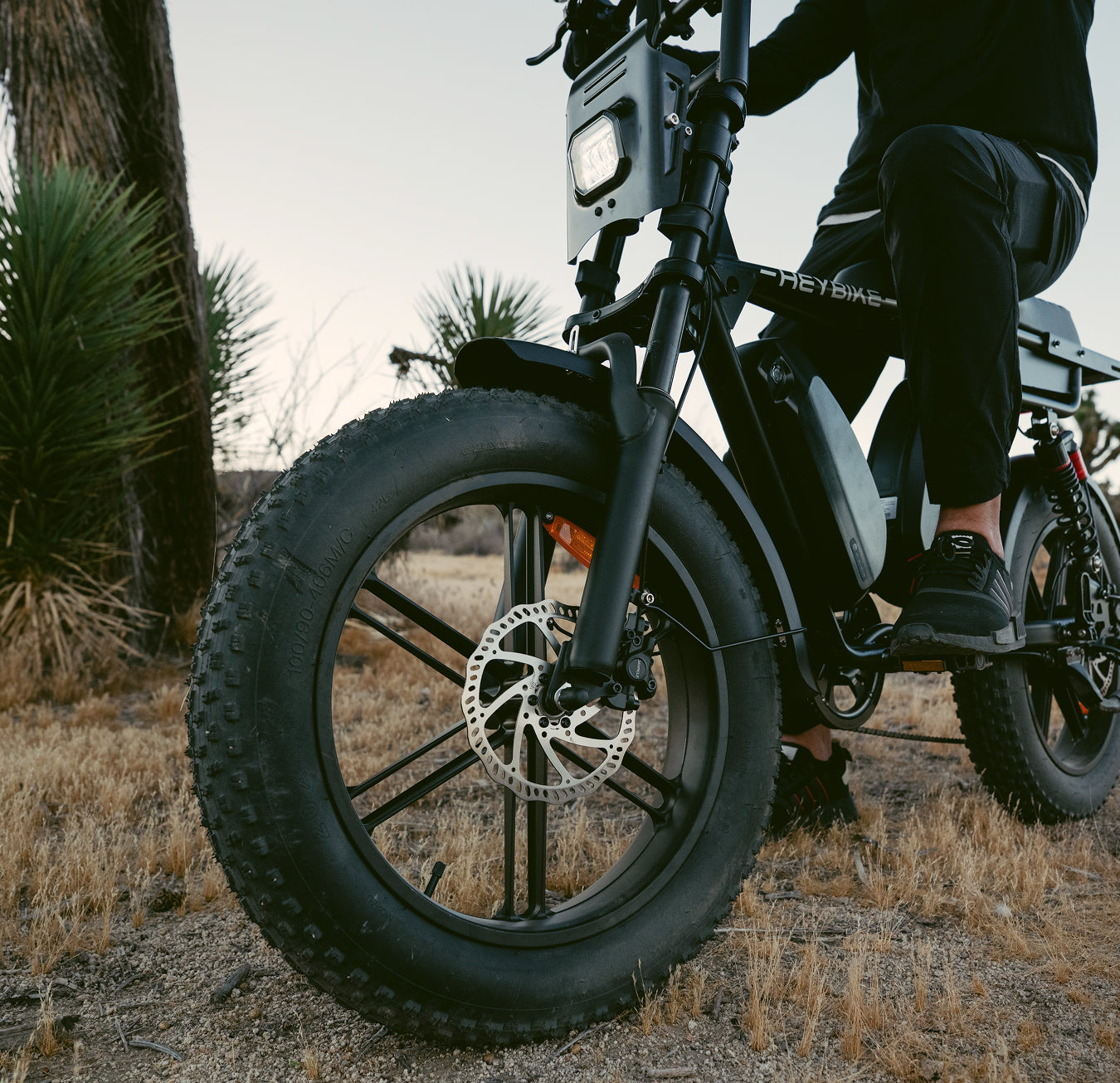

Tires: 20 × 4.0" Fat Tires
Brakes: 2-Piston Hydraulic Disc Brakes with Motor Cut-Off
Brake Rotors: 180 × 2.0 mm
Pedal Assist: Cadence Sensor
Chainring: 48T
Charger: 58.8V / 3A
Display: TFT Colour Display
App: Heybike Smart App — iOS & Android

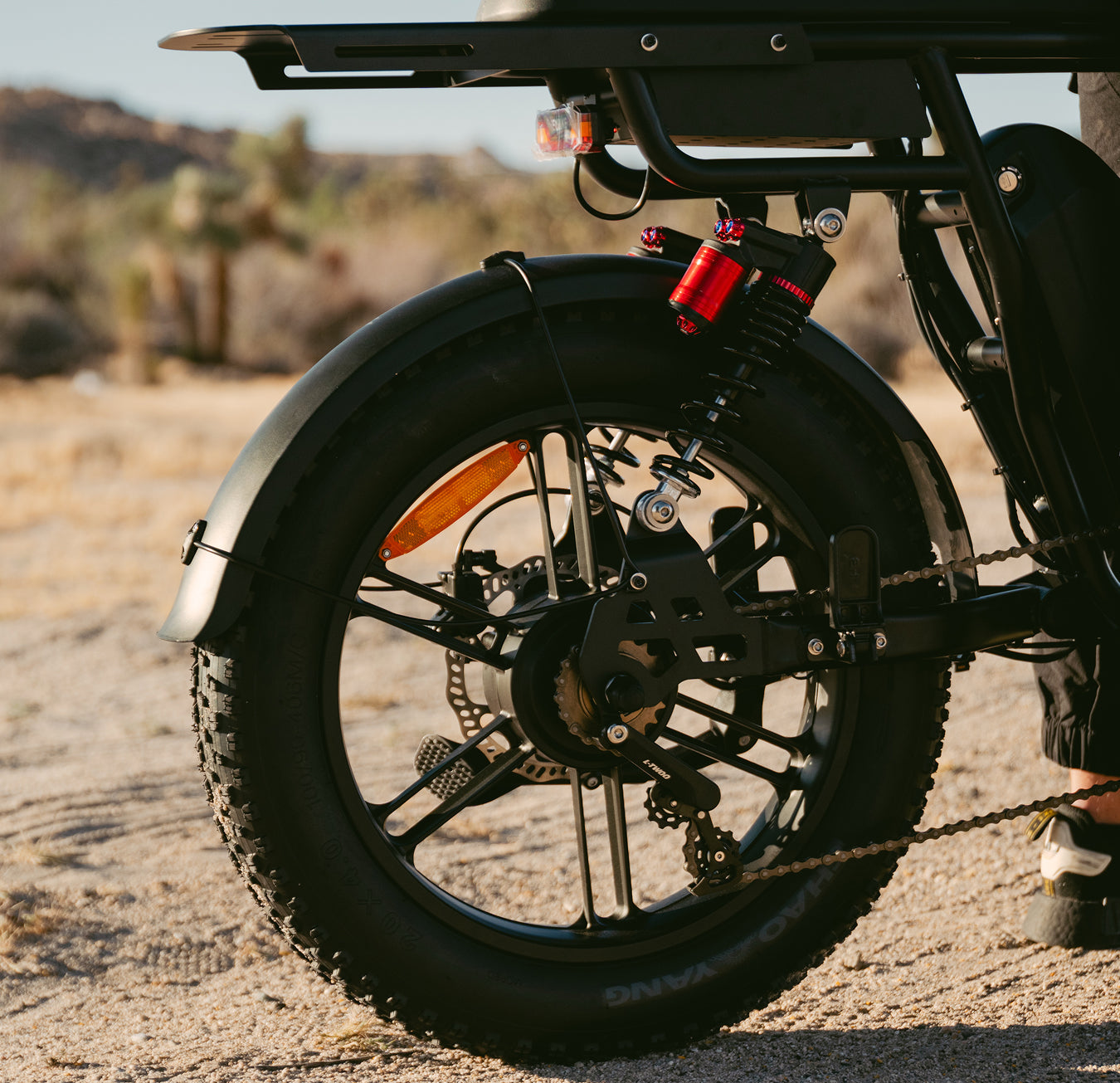

Max Load: 330 lb (150 kg)
Water Resistance: IPX6 Electrical Components / IPX5 Whole Bike
Weight: Single: 103 lb / Dual: 115 lb

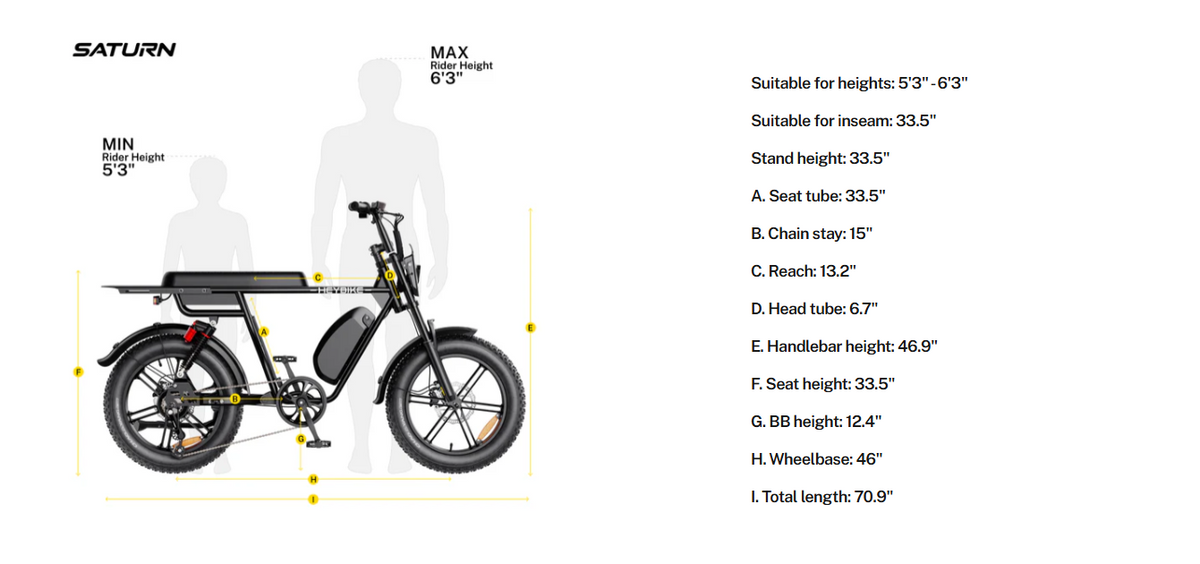

Dimensions: 70.9 × 26.8 × 48–48.8 inches
FAQs – Saturn
Yes. The rear fender comes pre-installed. The front fender and rear rack are included in the box and requires installation.
You can adjust the riding speed and classes in two ways:
- Via the Heybike app
Speed settings for PAS and throttle can be adjusted under Personalize → Speed Settings.
- Via the display settings
On the display, the change can be made through manual adjustment of top speed.

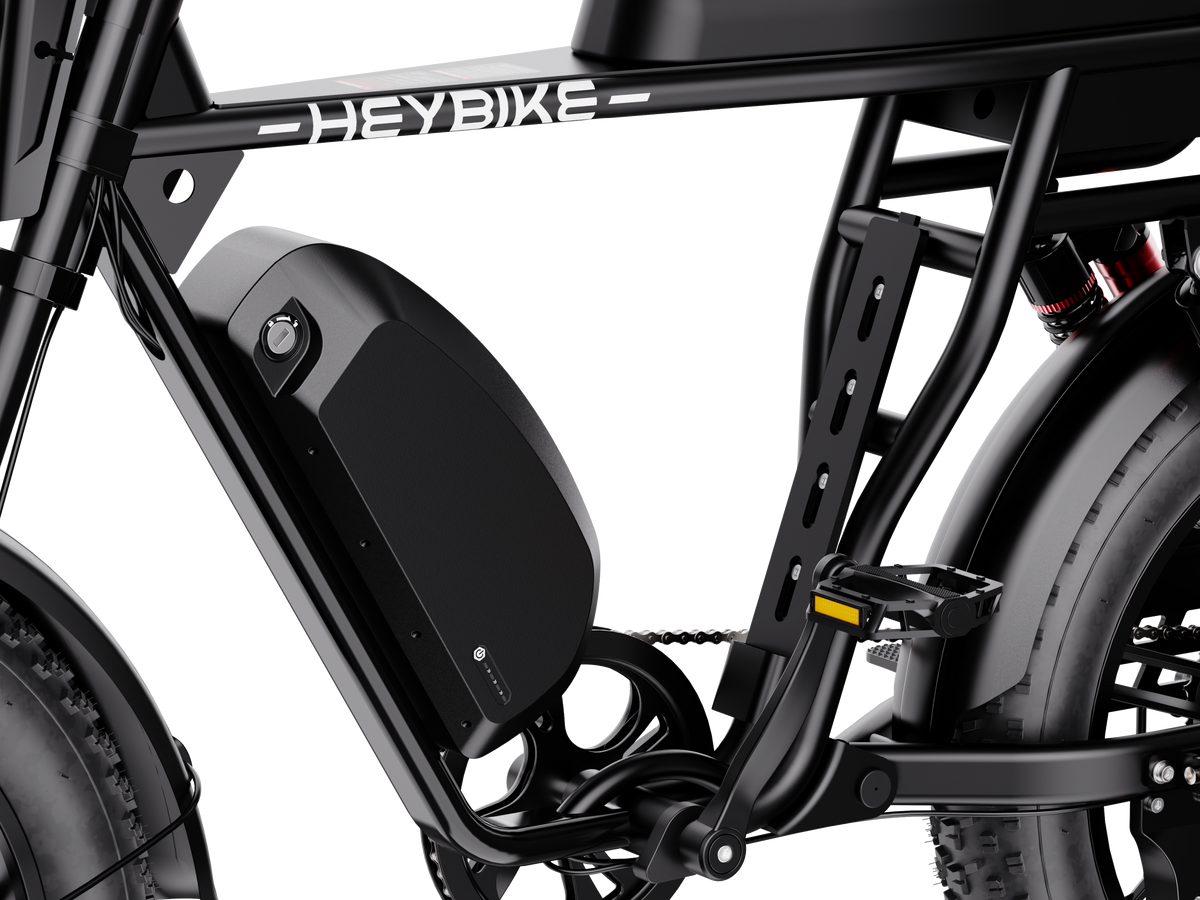

The Saturn is available with a 956.8Wh single battery or a 1913.6Wh dual battery setup.
Scan the QR code on the user manual card included in the package to access Heybike’s online manuals and assembly resources.
